Product Details

With tens of thousands of units sold since their introduction in 2011, ShoW Baby plug and play transceivers set the standard for ease of use and reliability at an affordable price point. The addition of Multiverse radio technology enhances the performance even more.

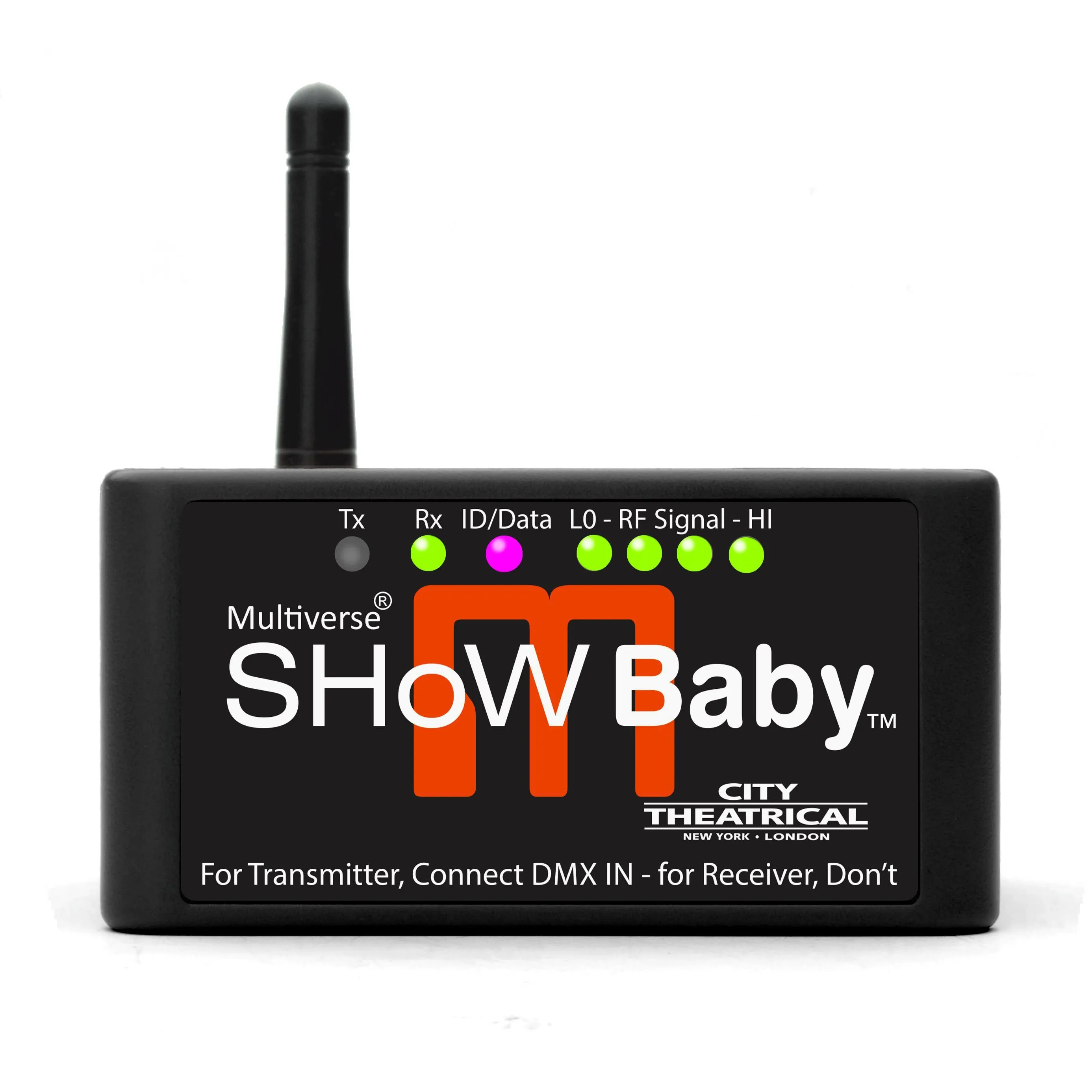

City Theatrical’s new Multiverse® SHoW Baby® is a wireless DMX transceiver that delivers breakthrough plug and play wireless DMX and RDM transmission. In its default mode, it works like any other  Transceiver, with six user selectable SHoW IDs. By connecting an RDM controller, like , all of the revolutionary new 2.4GHz Multiverse SHoW IDs are accessible.


Right out of the box, Multiverse SHoW Baby is fully compatible with all legacy  systems. Use it to build new single universe Multiverse systems, or use Multiverse SHoW Baby as a receiver on multiple universe systems with a .

Other compatible Multiverse products include:




• Full compatibility with all previous SHoW Babys right out of the box

• Instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don’t!

• Multiverse 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio

• Wirelessly broadcast and receive a full Universe (512 slots) of DMX

• Robust wireless DMX512 and RDM data transmission

• Six user selectable SHoW IDs accessible on the “SET ID” button, plus 147 Multiverse and 70 SHoW DMX Neo SHoW IDs accessible via RDM.

• Extremely low 4mS latency

• RDM proxy and responder functions

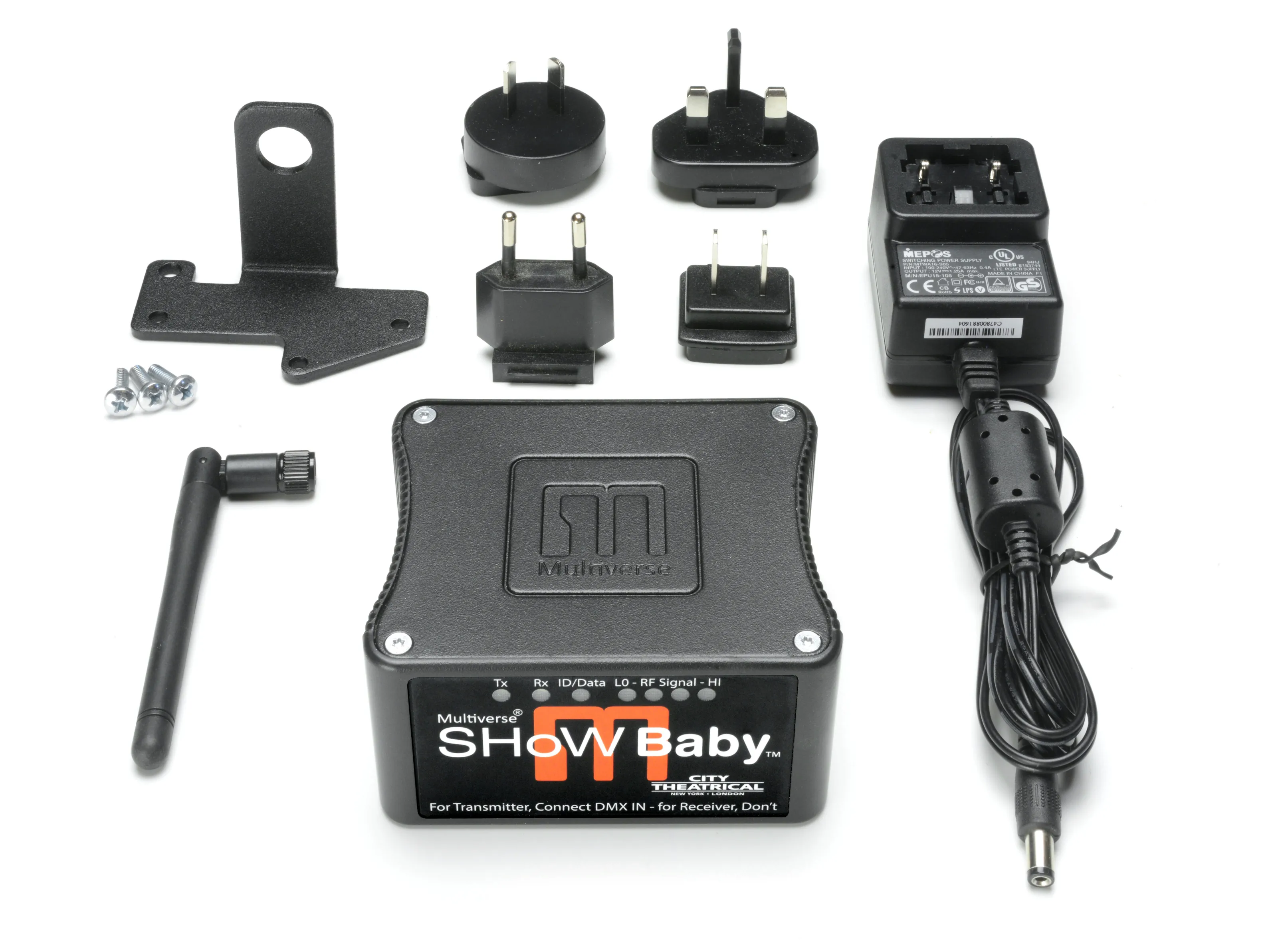

• Mounting bracket for installation with C-Clamp or similar hanging hardware

• Included CL2 Power Supply

• Included 2dBi omni-directional antenna

• Neutrik® 5P XLR Connectors for DMX IN and DMX OUT


Physical Specifications

Length

92mm (3.625 in)

Width

76mm (3.00 in)

Height

46mm (1.80in)

Weight

0.16 Kg (0.35 lb)

Construction

Steel, ABS plastic, Black


Connection Specifications

DC Jack, 5.5mm x 2.1mm barrel, center positive, 9mm mating depth (this power supply connector is not compatible with Multiverse Node)

Neutrik® 5-Pin XLR connectors for DMX512 IN and OUT/thru ports

RP-SMA female antenna connector

USB Type-A port, internal (requires removing cover and circuit board)



Functionality

User Interface

1 Button/LEDs

RDM Features

RDM Proxy, RDM Responder


Power

Input Power

5-30VDC, 0.8W

Max Draw

66mA max draw at 12V

AC Adapter Voltage

100VAC to 240VAC 50/60Hz



Radio Technology

Latency

4 ms average

RF Sensitivity

-95dBm

Loss of Data Behavior

Output stops

Broadcast Power

2.5mW, 8mW, 25mW, 80mW EIRP

Broadcast Modes

Adaptive, Full, Low, Mid, High, Max

DMX Burst Modes

Auto Dynamic

Show IDs

217 (Americas and Worldwide)



Additional Product Information

Use Environment

Indoor

Operating Temperature

0° C to 40° C

Storage Temperature

-40° C to 85° C

IP Rating

IP50

Compliance

FCC, IC, CE

Warranty

One year

CITY THEATRICAL MULTIVERSE SHOW BABY WIRELESS DMX TRANSCEIVER
  • DefaultTitle

$ 56.37

$ 43.36
