PN / FAC-WPB-08 *

Factor Electronics microphones are professional tools designed for use in commercial and professional audio installations. All Factor Electronics microphones provide sturdy
construction insuring long term reliability and crystal clear audio quality. Trust Factor Electronics microphones for your next high quality installation.

Features:

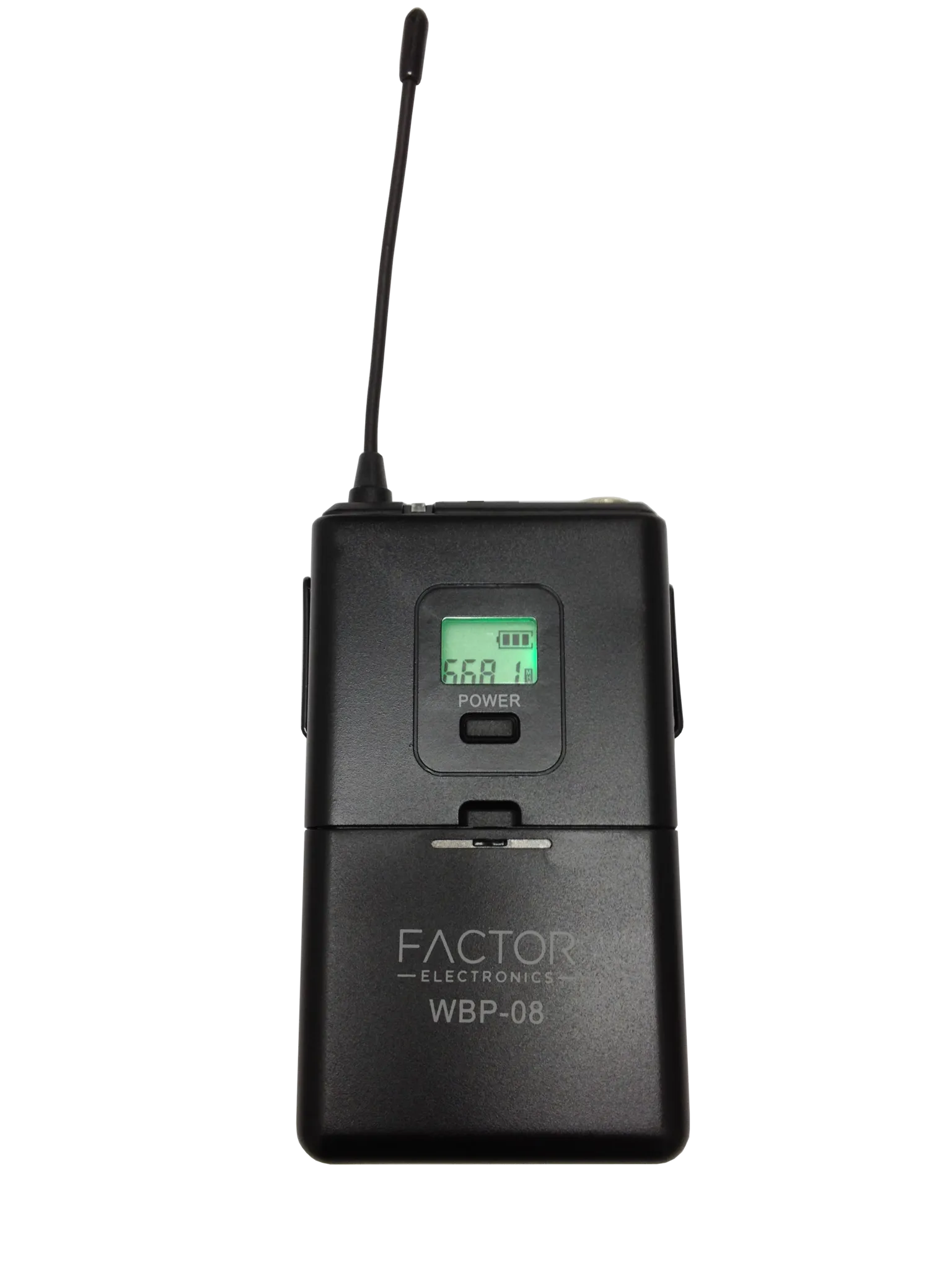

UHF wireless belt-pack transmitter
Includes lavalier microphone with tie clip
Operates on 2 x AA batteries
LCD status display
Frequency and battery status display

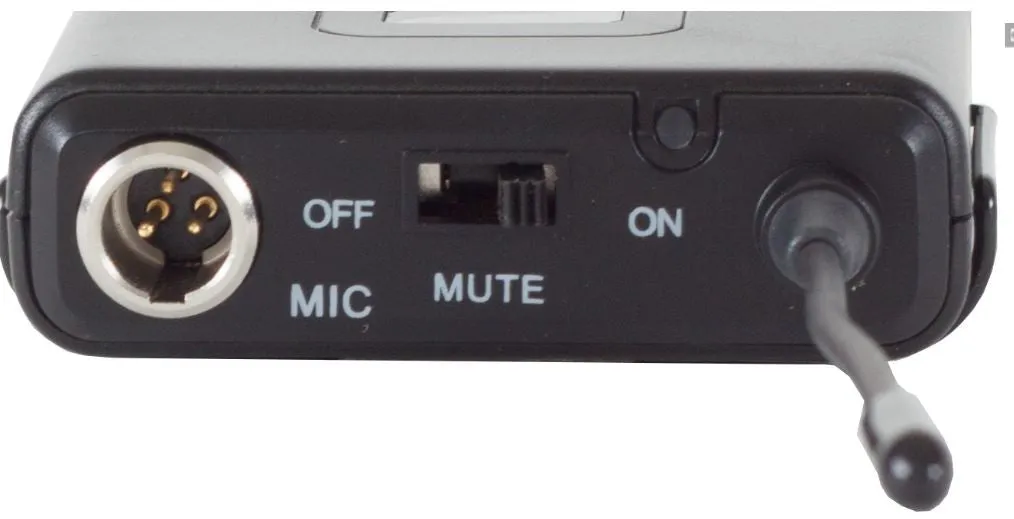

Integrated ON/OFF switch
3 Pin balanced mini XLR output
Works with the the following systems:
WM1-UHF
WM2-UHF
WM2-UHF-PRO
WM4-UHF-PRO

Specifications:

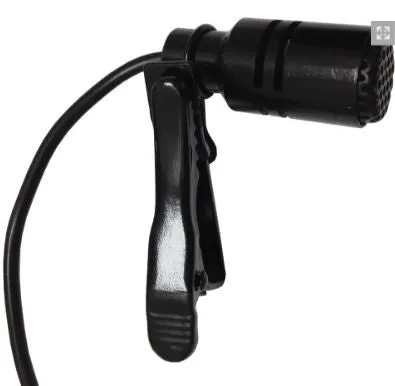

Lavalier Microphone:
Capsule type – back electret condenser
Pickup pattern – Omni-directional
Frequency Response – 60Hz- 20kHz
Sensitivity - (-45dB /- 3dB)
Impedance - 1000 ohms @ 1kHz
Max SPL- 120dB
Color black
Miniature 3 Pin balanced XLR output
Requires 9V - 52V phantom power
Includes 3.9' miniature XLX-F cable
Mates with the WPB-08
wireless belt-pack transmitter

Belt pack Transmitter:
ON/OFF switch – Yes
Power – 30mW
Spurious Emission <40dB (with carrier)
Display – LCD
Battery voltage 1.5V x 2 AA
(rechargeable or regular)
Battery life- 8 hours approx

Dimensions: (W x D x H)
W= 2.75”/70mm x
D= 1”/25mm
H=3.75”/96mm
