A 656' line-of-sight wireless range with UFH 514 to 596 MHz technology communicates with your preexisting WMicS2 receiver for improved audio. Built-in features like a low-cut filter and mute can be controlled via the onboard buttons. An internal 770mAh lithium battery keeps the transmitter running. It recharges via its USB-C port.
Features at a Glance
- Designed for use with WMicS2 dual-channel receiver (available separately)
- Transmitter with built-in mic
- Antenna can be folded down when not in use
- 3.5mm port for included omnidirectional lavalier
- UHF wireless frequency range from 514 to 596 MHz
- Built-in 770mAh lithium rechargeable battery
- 656' line-of-sight range, 197' range with barriers

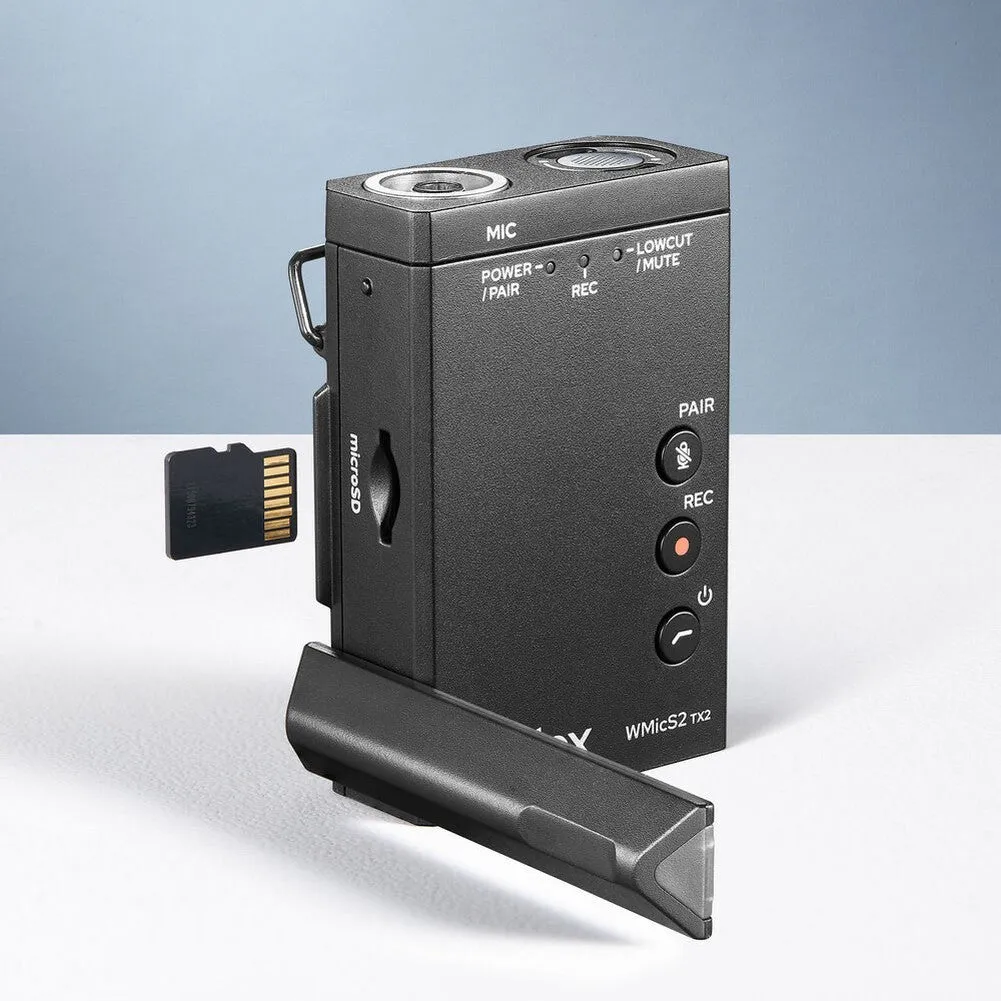

- Low cut/mute button, backup recording with TF card slot
- Included body clip, magnet mount, 1/4"-20 thread for camera mounting
- Foam windscreen reduces wind noise
Key Features
- For WMicS2 Wireless Systems
- Built-In Mic, Omnidirectional Lavalier
- 656' Wireless Range
- 96 Manually Selectable UHF Frequencies
- Backup Recording via TF Card Slot
- Low-Cut Filter, Mute Button
- Built-In Battery, USB-C Port
- Foldable Antenna
Specifications
|
Microphone Type |
Lavalier |
|
Color |
Black |
|
Sound Field |
Mono |
|
Polar Pattern |
Omnidirectional |
|
Sensitivity |
None |
|
CMRR |
None |
|
Dynamic Range |
None |
|
Capacity |
10,000 mAh |
|
Charging Interface |
USB-C |
|
Dimensions |
7.3 x 3.3 x 1.7" / 185.8 x 84.2 x 42 mm |
|
Weight |
12.9 oz / 367 g |
|
Wireless Technology |
Analog |
|
RF Frequency Band |
514 to 596 MHz |
|
RF Bandwidth |
82 MHz |
|
RF Channel Scanning |
Manual |
|
Max Operating Range |
656.2' / 200 m (Line of Sight) |
|
Max Transmitters per Band |
1 |
|
Built-In Recorder |
Yes |
|
Timecode Support |
No |
|
Mobile App Compatible |
No |
|
Latency |
12 ms |
|
Encryption |
None |
|
Transmitter Type |
Bodypack with Microphone |
|
RF Output Power |
Not Specified by Manufacturer |
|
Audio I/O |
1 x 1/8" / 3.5 mm TRS Female Input |
|
Included Cable Connector |
1/8" / 3.5 mm TRS |
|
Pad |
None |
|
Muting |
Mute Switch |
|
Auto-Level Control |
No |
|
Memory Card Support |
SD |
|
Audio File Formats |
WAV |
|
Signal Processing |
None |
|
Frequency Response |
40 Hz to 18 kHz |
|
Sync Method |
Manual |
|
Antenna |
2 x External, Fixed |
|
Power Requirements |
Battery |
|
Battery Type |
1 x Built-In Rechargeable |
|
Internal Battery Capacity |
770 mAh |
|
USB/Lightning I/O |
1 x USB-C (Charging) |
|
Display & Indicators |
1 x LED (Battery Status, High-Pass Filter, Mute, Sync) |
|
Operating Temperature |
14 to 113°F / -10 to 45°C |
|
Dimensions |
2.6 x 2 x 0.8" / 65.8 x 50.4 x 20.4 mm (without Antennas) |
|
Weight |
2 oz / 57 g |
|
Microphone Type |
Integrated |
|
Color |
Black |
|
Sound Field |
Mono |
|
Polar Pattern |
Omnidirectional |
|
Outputs |
None |

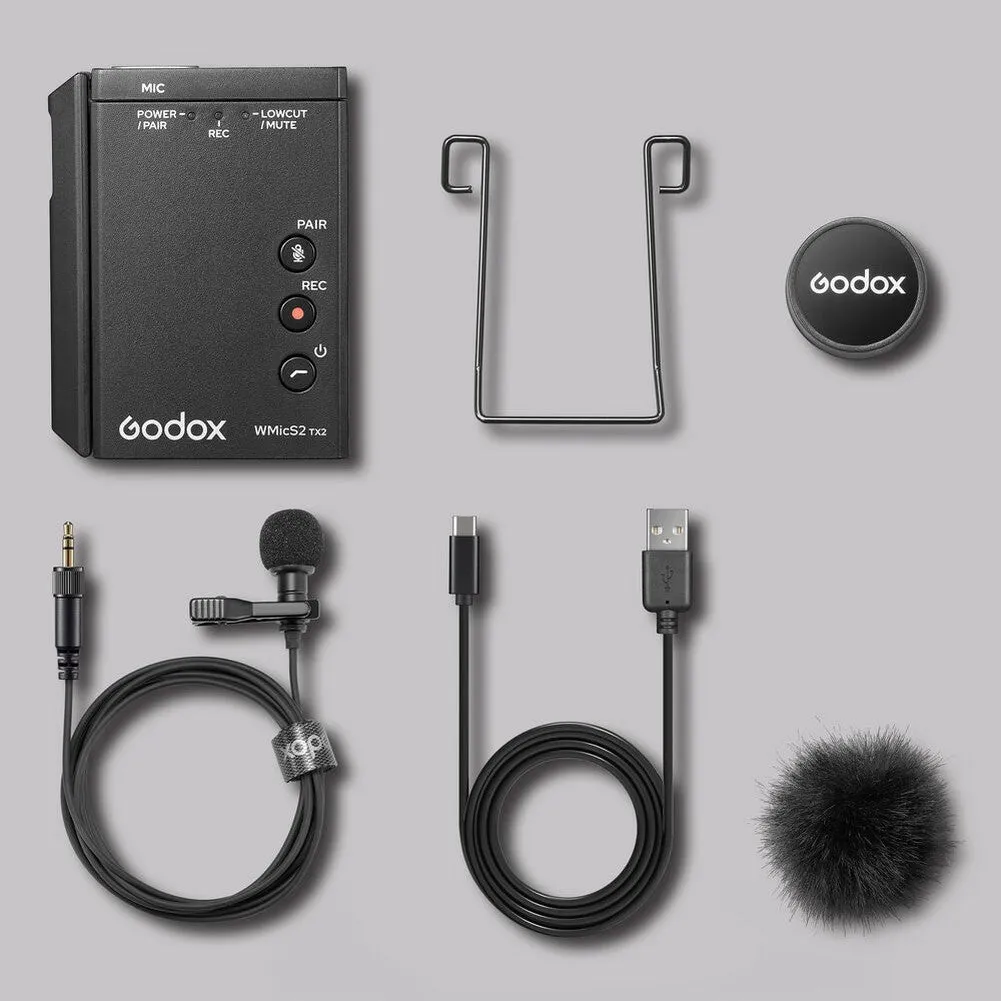

What's Included

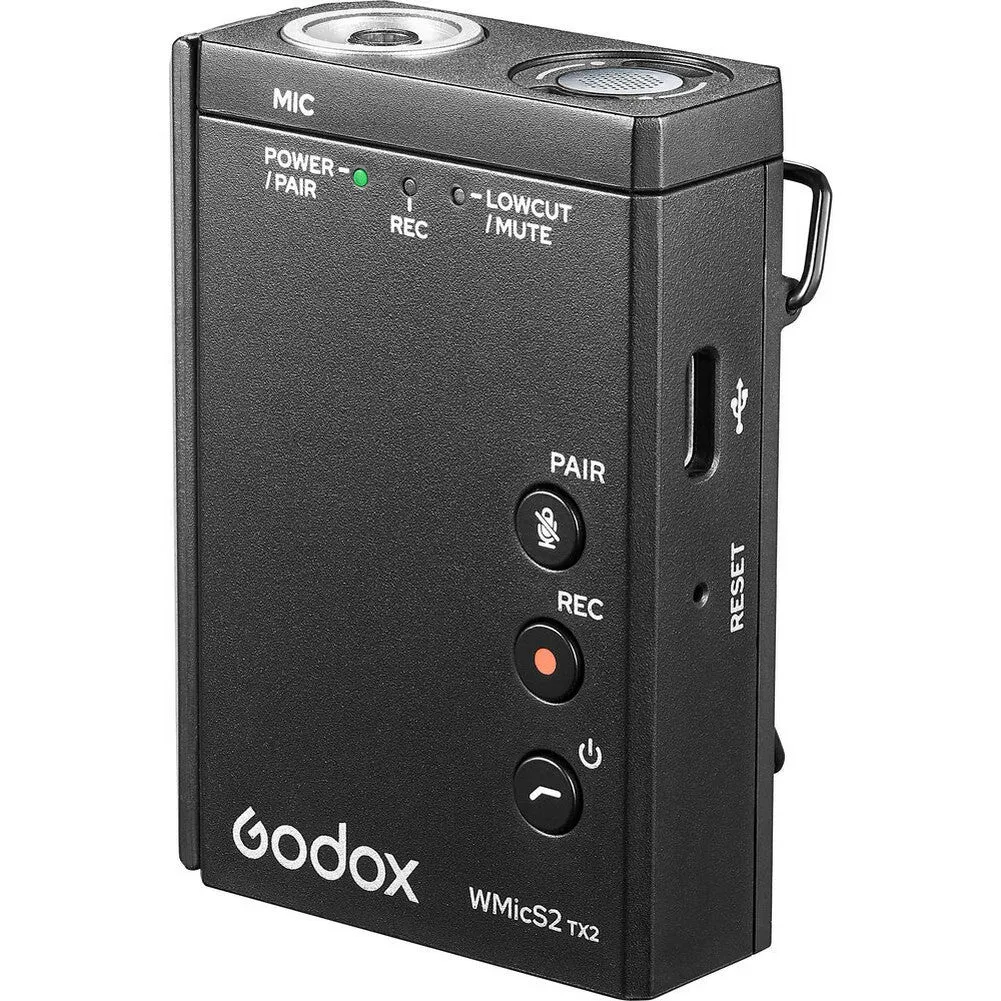

1 x Godox WMicS2 Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz)
1 x USB-C Cable
1 x Foam Windscreen
1 x Back Clip
1 x Magnet Mount
1 x Omnidirectional Lavalier Microphone
