Descriptions:

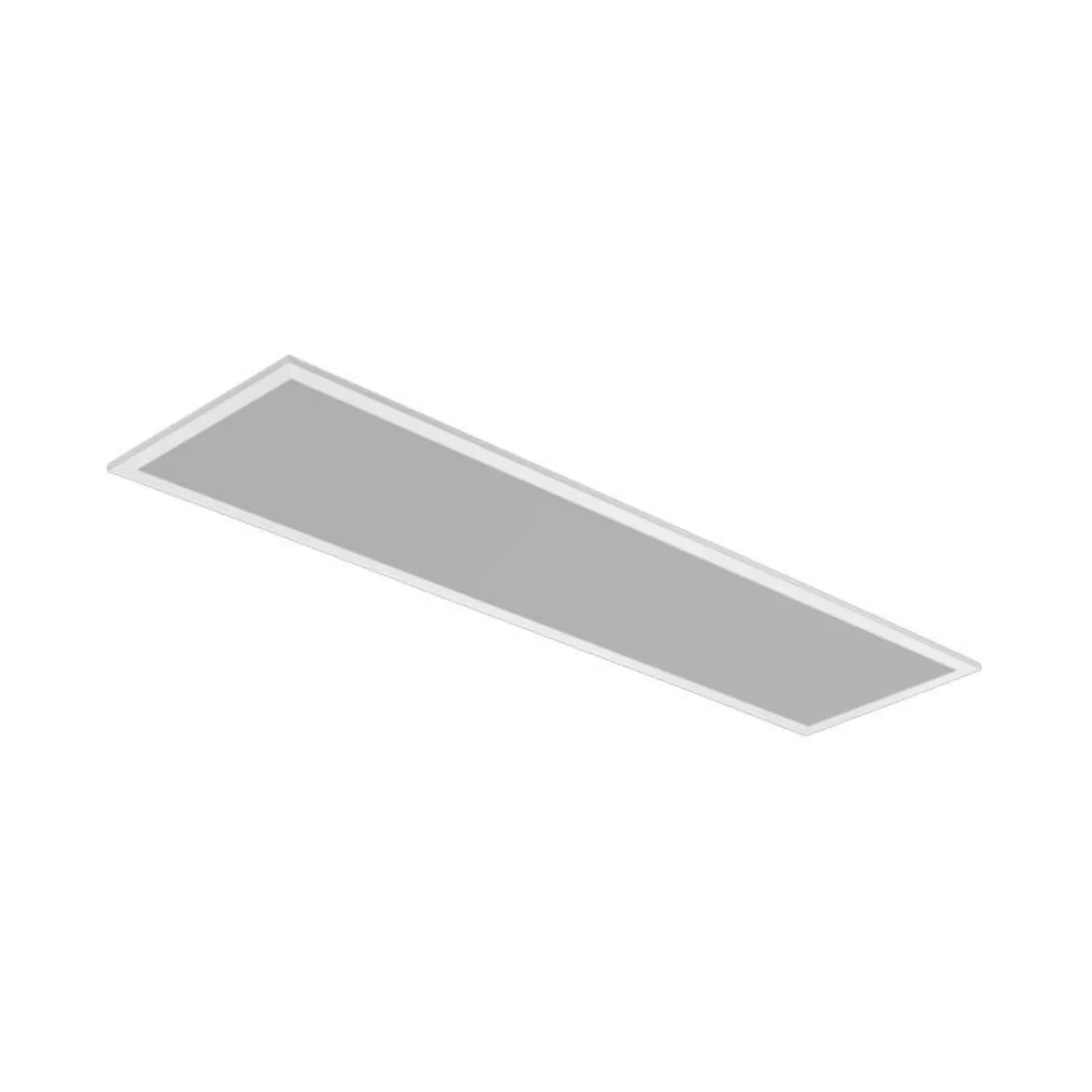

40 watt LED High CRI panel UGR<19. Low COI suitable for use in hospitals and medical centres to achieve compliance with AS/NZS 1680.2.5.

Specification:

• Extruded aluminium profile with high efficiency opal polystyrene back diffuser
• Quality white powder coated finish
• High efficiency SMD LED chips UGR<19, beam distribution 100 degree, CCT selectable 3000,4000,5700K
• Integral constant current non-dimmable LED driver, 40 watt
• Cyanosis Observation Index (COI) compliant with AS/NZS 1680.2.5, High colour rendering with emergency options available

Dimension: (length a width x height mm)

• S9754/312 = 1195 X 295 X 10
• S9754/606 = 595 X 595 X 10

Model No.	Description	Input (ac)	Power	Lumens	CCT	Body Colour
S9754HC/312CW	LED PANEL HIGH CRI 295 x 1195mm CW	240	40	2800	4000	WHITE
S9754HC/606CW	LED PANEL HIGH CRI 595 X 595mm CW	240	40	3200	4000	WHITE

INSTALLATION TYPES - Standard metric T-Bar ceiling recessed installation, Air Slot models to suit –/312 panel sizes, Plaster ceiling recessed installation (S9704 Plaster ceiling frame required), Clen Room models to suit –/606, –/312 panels sizes, Surface mounted installation (S312FM, S606FM surface mounted frame required), Suspended installation (SSI1512 & S9714SP6 or SSY1512 & S9714SP6, Suspension Kits required Dimming options - 1-10V analogue (excluding S9754HC/612)
