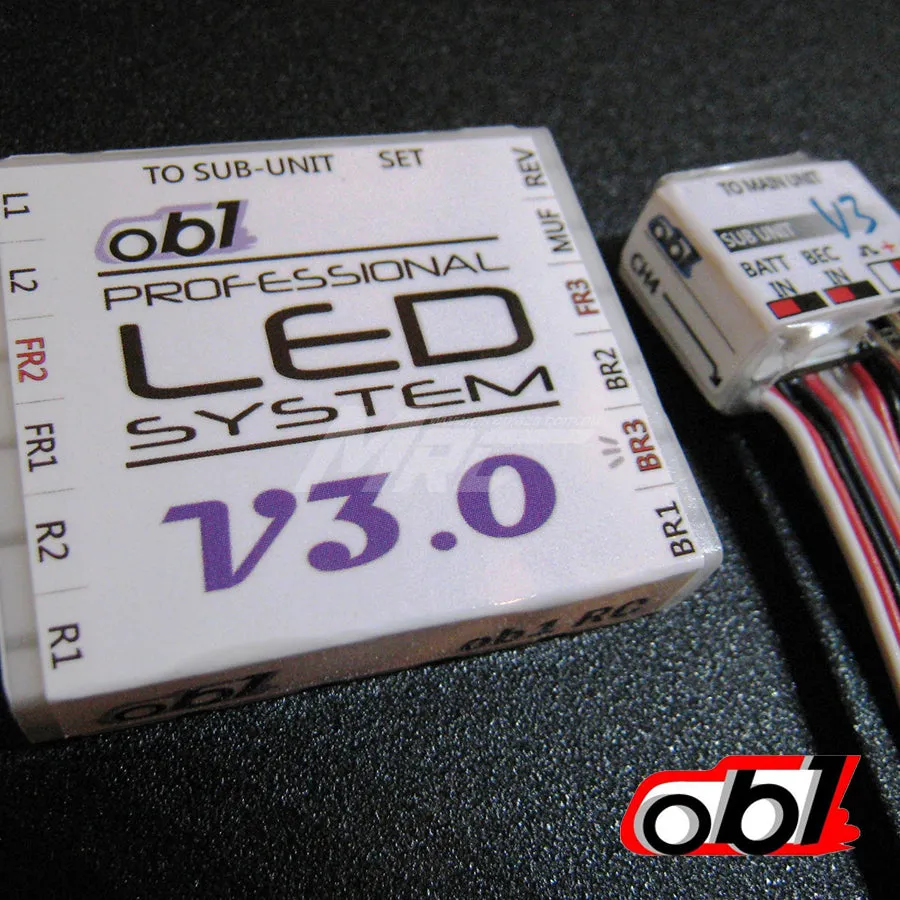

ob1 (BL-V30) V3.0 Professional LED System
Feature:

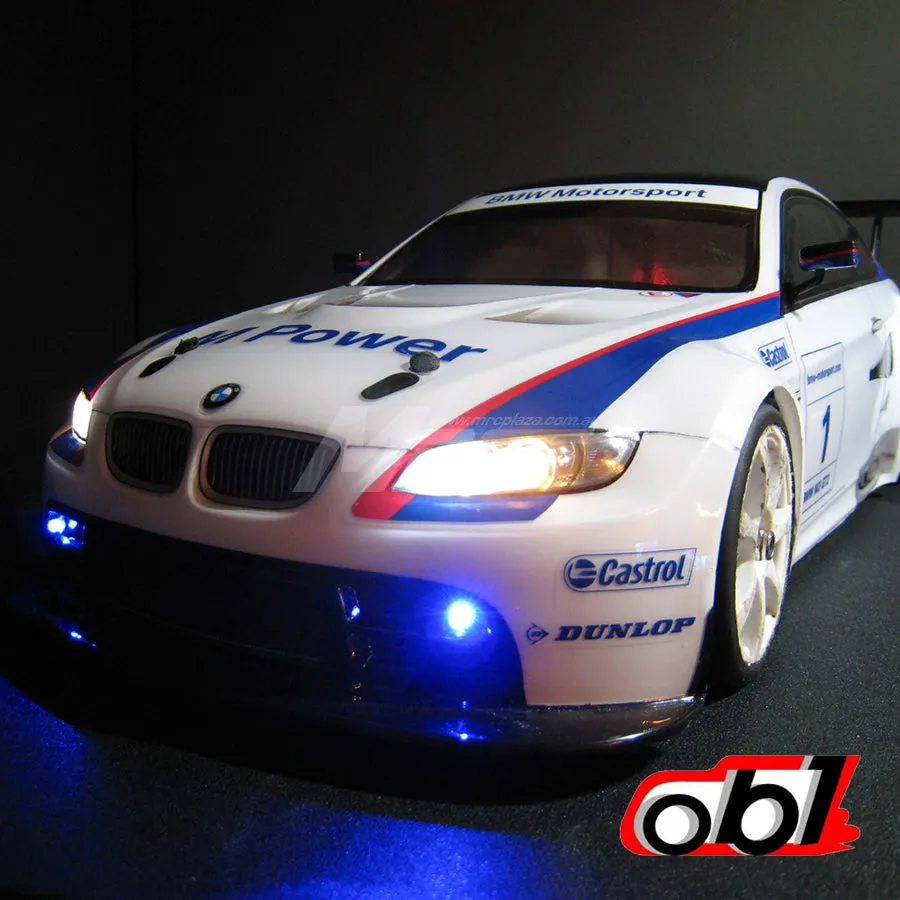

- For: 1:10 RC drifting and touring cars
- Low Voltage Detection (LVD), Buzzer uses as audible alarm
- Flash mode (All LED), Press SET switch anytime (or use CH3) after power on to change total 7 flashing styles
- BR3, FR2, 3 connectors have 4 Power Options (Low/ Mid/ High / Extra High)
- 1 connector can drive Max. 16 LED (20mA type)
- FR1-3 (Front lamp) / BR1-3 (Brake lamp) / L1-2, R1-2 (Left & Right signals) / MUF (Muffler lamp) / REV (Reverse lamp)
- 1-4 Channels input;
- Auto-calibration on every power on >> Plug&Play !!
- Main / Sub Unit design, uses 1 cable to connect each others
- Support virtually all RC systems in market
- High Response 2.4G System, PCM / PPM (FM), AM
- Powered by BEC of RC system, no external power required
- However if HIGH / EX-HIGH Power option used, external BEC is required
Function:
CH1 - Steering
- Left / Right winker lamp
CH2 - Throttle
- 2-level brightness brake lamp
- Auto hazard lamp
- Reverse lamp
- Muffler lamp
- Toggle function (Hold full brake for 3 sec. to change LED status, total 4 steps !)
CH3 - ON/ OFF
- Flash mode Toggle or
- Front lamps On/ Off
CH4 - ON/ OFF
- Manual hazard
- Front / Muffler / REV lamps On/ Off
Specification:
- Input Voltage: 5-6VDC (Powered by BEC), absolute Max. 9V
- Low Voltage Detection battery type: 1-6S LiPo / LiFePo (User define Max. 25.2V)
- Support RC Modulation: High Response 2.4G system / PCM / PPM (FM) / AM
- Dimension (Main unit): 44mm (L), 38mm (W), 10mm (H)
- Dimension (Sub unit): 22mm (L), 22mm (W), 10mm (H)
- Weight: Main unit 12g / Sub unit 10g (Not includes cables)
What is included:
- Main unit (1 pc)
- Sub Unit (1 pc)
- Main cable (1 pc)
- SET switch cable (1 pc)
- Front LED cable (5mm Ultra high brightness WHITE LED x 2) (1 pc)
- Brake LED cable (5mm Ultra high brightness RED LED x 2) (1 pc)
- Left / Right LED cable (3mm high brightness YELLOW LED x 2) (2 pcs)
- 2S battery cable (1 pc)
- User Manual (English) (1 pc)
