PRODUCT DETAILS
Description

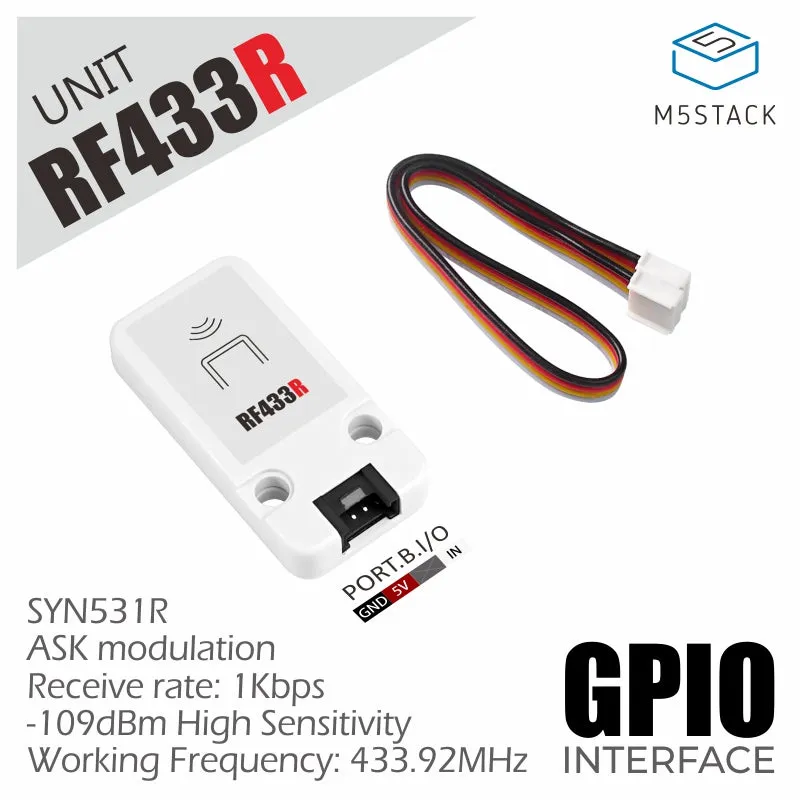

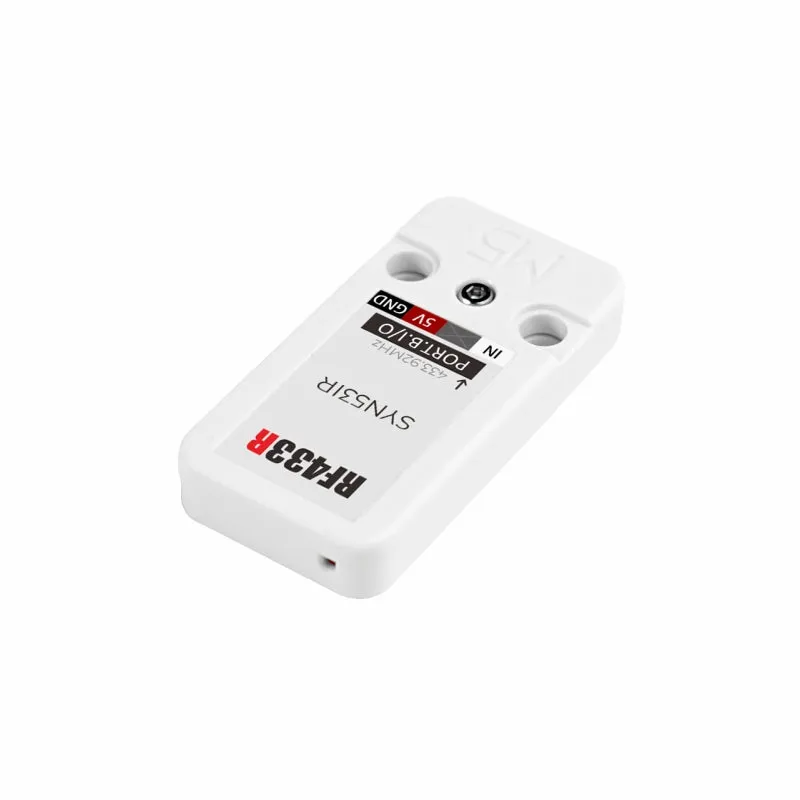

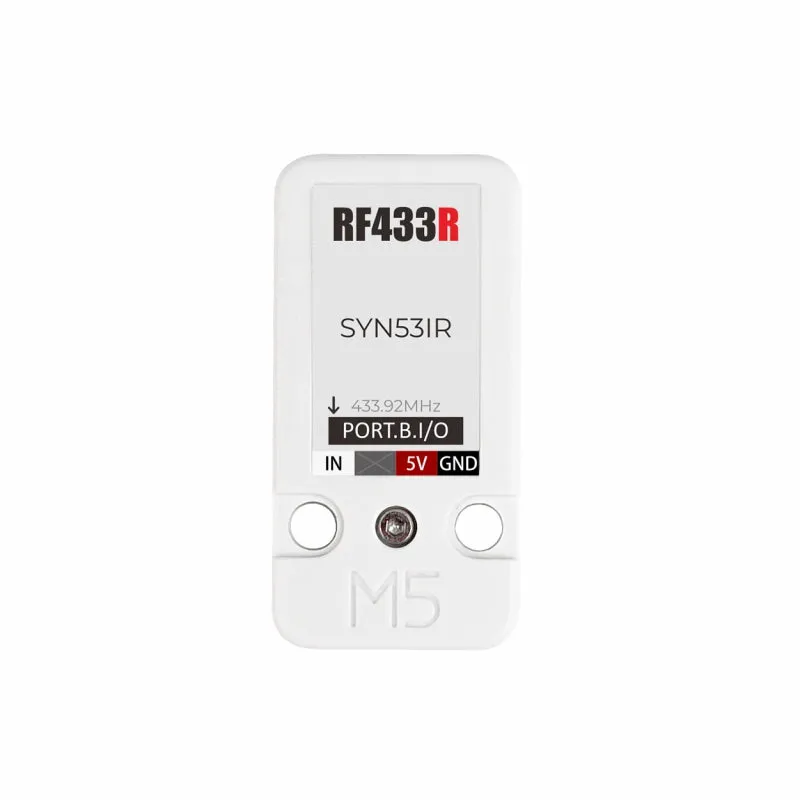

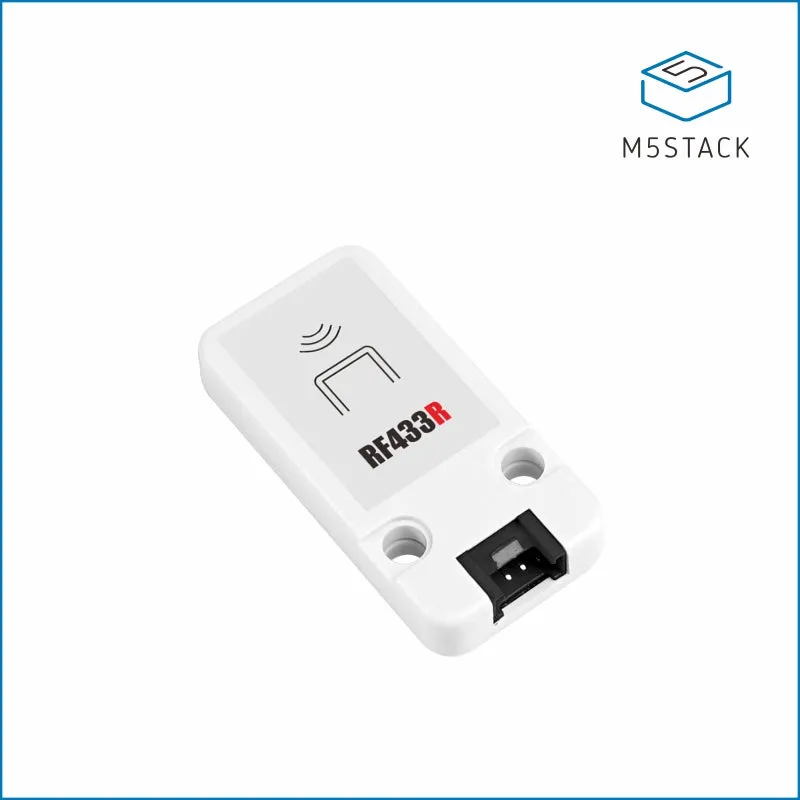

RF433R Unit is an RF wireless radio frequency receiver designed for various applications requiring wireless control. It utilizes the SYN531R radio frequency receiver IC and operates at a frequency of 433.92MHz using Amplitude Shift Keying (ASK) modulation.
The unit features a built-in PCB antenna, ensuring stable reception of signals at distances of up to 10 meters. It has a typical receiving sensitivity of -109dBm, allowing it to capture weak signals effectively.
With its compact and exquisite housing design, the RF433R Unit can be easily embedded in a wide range of radio frequency remote control applications. It is suitable for use in security alarm systems, wireless automatic meter reading, home and industrial automation, remote control applications, wireless data transmission, and other related fields.
Product Features
- Operating frequency: 433.92MHz
- -109dBm high sensitivity, receiving rate 1Kbps (ASK modulation)
- PCB antenna
- Excellent selectivity and noise suppression

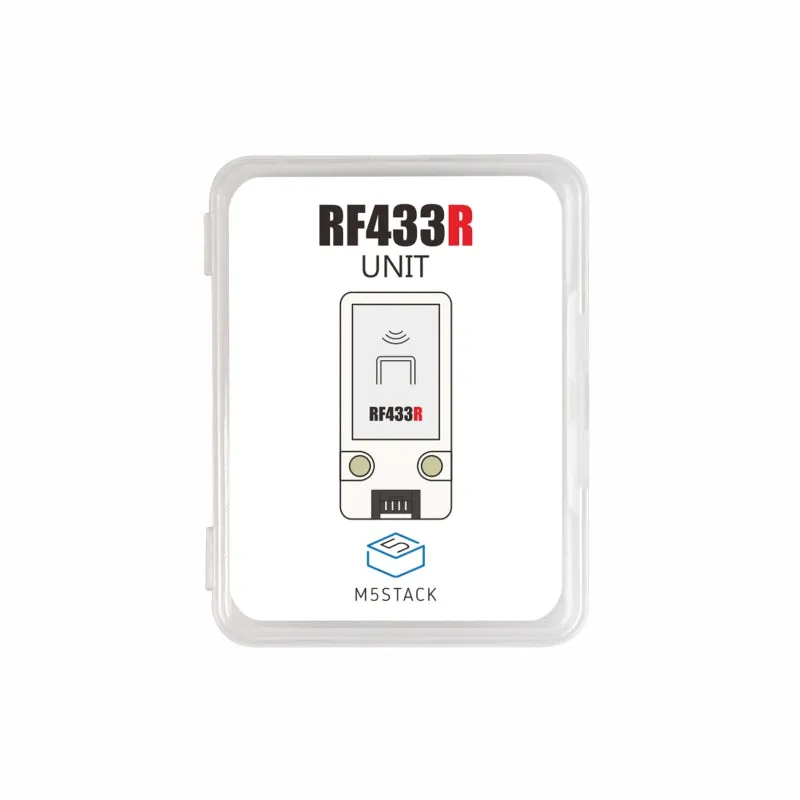

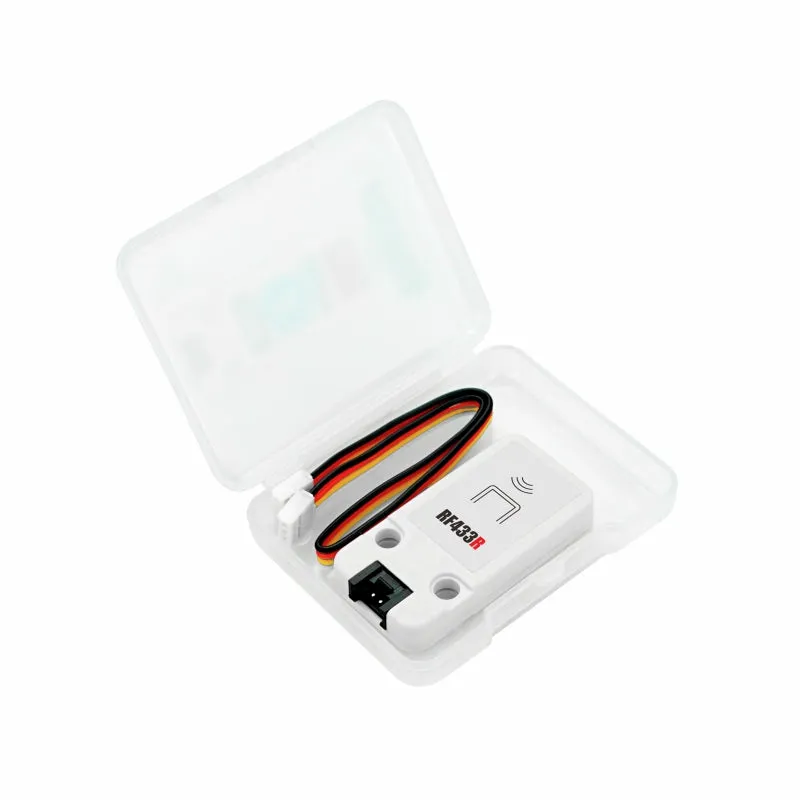

Include
- 1x RF433R Unit
- 1x HY2.0-4P Cable
Applications
- Building Automation
- Security alarm
- Home and industrial automation
- Remote control
- Wireless data transmission and other system fields
Specification
| Resources | Parameter |
|---|---|
| Receiver IC | SYN531R |
| Working current | 8mA |
| Stable communication distance | 10M |
| Typical receiving sensitivity | -109dBm |
| Antenna type | PCB antenna |
| Net weight | 6g |
| Gross weight | 21g |

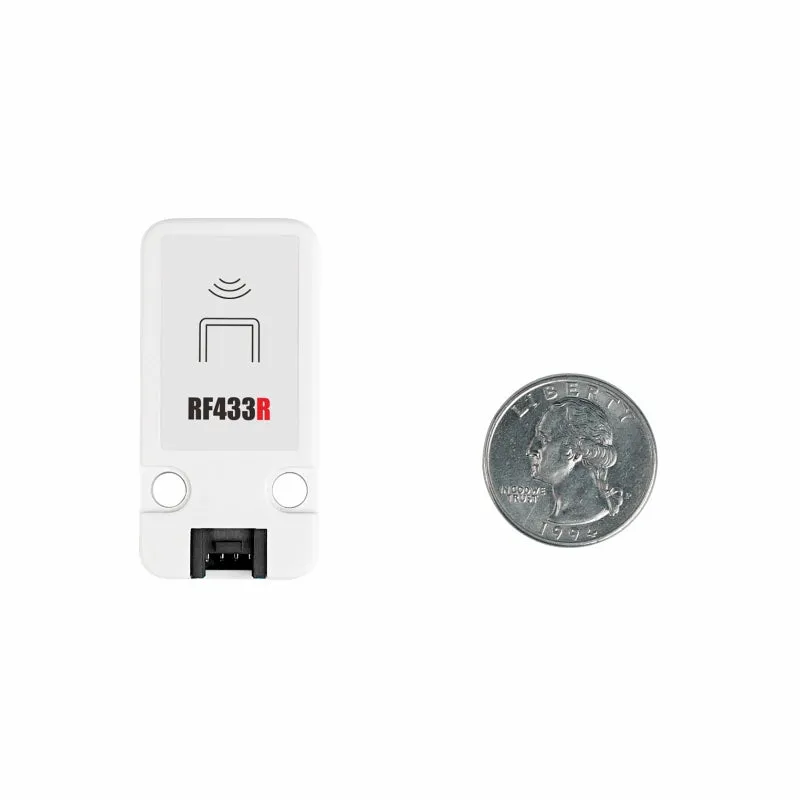

| Product Size | 48*24*8mm |
| Package Size | 67*53*12mm |
